# Connecting to the Hyperliquid exchange

Before using Moonbot as a terminal for Hyperliquid, we recommend that you register an account on the Hyperliquid exchange via our referral link: 🔗 [https://app.hyperliquid.xyz/join/MOONBOT](https://app.hyperliquid.xyz/join/MOONBOT)

If registration is completed without using this link, the Moonbot terminal will automatically insert its referral code on first launch.

Using the referral link or code provides a small fee discount and allows you to activate the PRO version of Moonbot.

Trading on the Hyperliquid DEX exchange uses a standard DeFi wallet with EVM (Ethereum Virtual Machine) support. An EVM wallet is a digital wallet for interacting with the Ethereum blockchain and other EVM-compatible networks.

If you do not yet have an EVM wallet (for example, Rabby, MetaMask, WalletConnect, Coinbase Wallet), you can create one on the 🔗 [https://rabby.io/](https://rabby.io/) or use the corresponding browser extensions for Google Chrome. \
Additional information on connection methods for the Hyperliquid exchange can be found here: 🔗 [Hyperliquid: how to start trading](https://hyperliquid.gitbook.io/hyperliquid-docs/onboarding/how-to-start-trading)

After installing the wallet browser extension:

1. Create a new wallet;
2. Set a password;
3. Write down the unique secret recovery phrase (seed phrase).

⚠️ **Attention!** Anyone who has access to your wallet password or secret phrase can access your funds. Never share this information with anyone. It is best to write it down on a separate flash drive or paper and store it in a safe place.

Next, perform the following steps:

1. Transfer ETH to the created wallet in the Arbitrum network;
2. Within the wallet, swap ETH to USDC in the Arbitrum network;
3. Leave a small amount of ETH (approximately equivalent to 10 USD) to pay fees (gas) when depositing USDC to the Hyperliquid exchange;

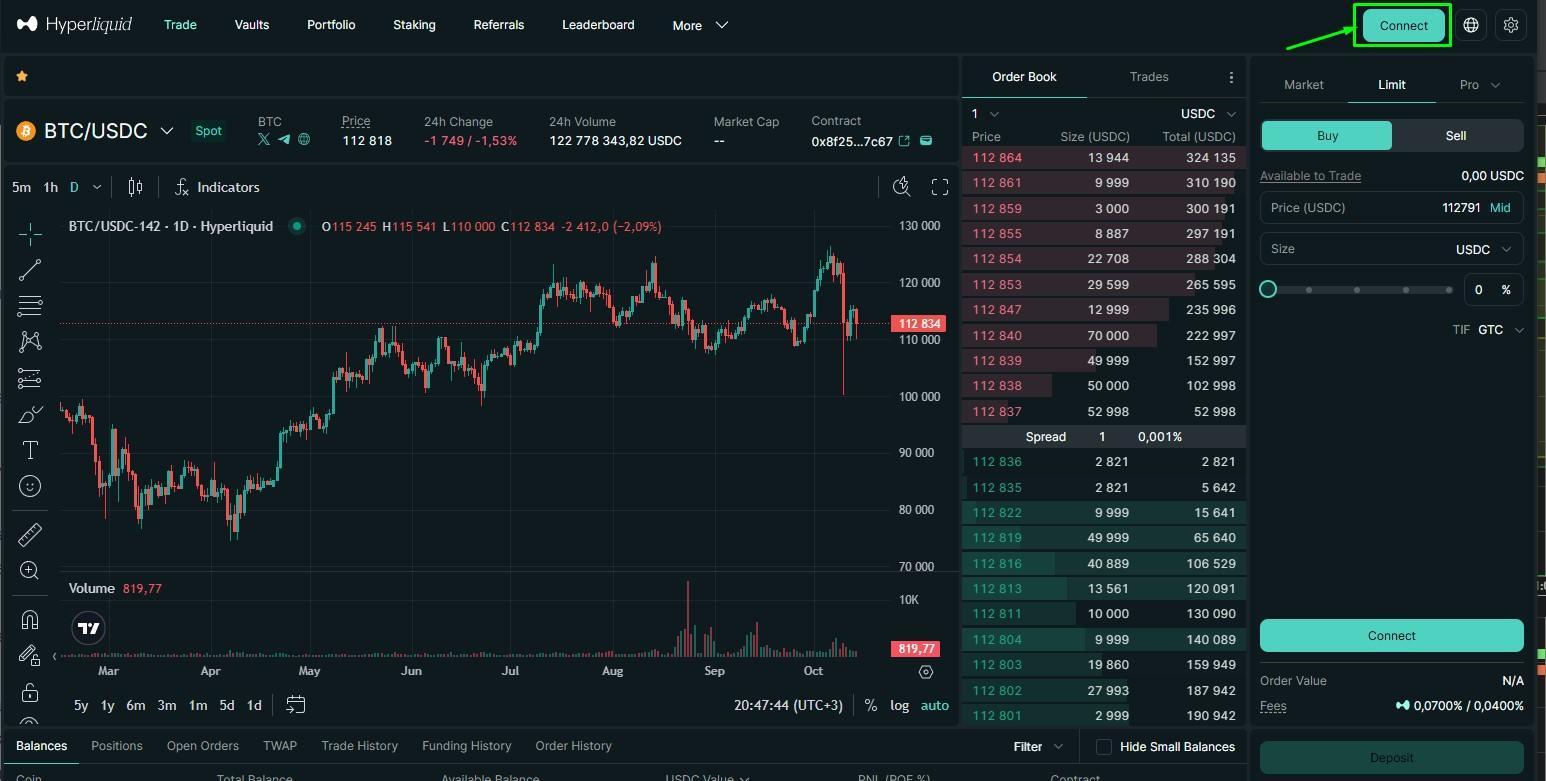

4. Open the trading page 🔗 [https://app.hyperliquid.xyz/trade](https://app.hyperliquid.xyz/trade);
5. Click the **Connect** button to connect the browser wallet.

Further examples will be provided using MetaMask; similar steps apply to any other wallet convenient for you.

### Funding the Balance via MetaMask

![](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Connect.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Connect.jpg)

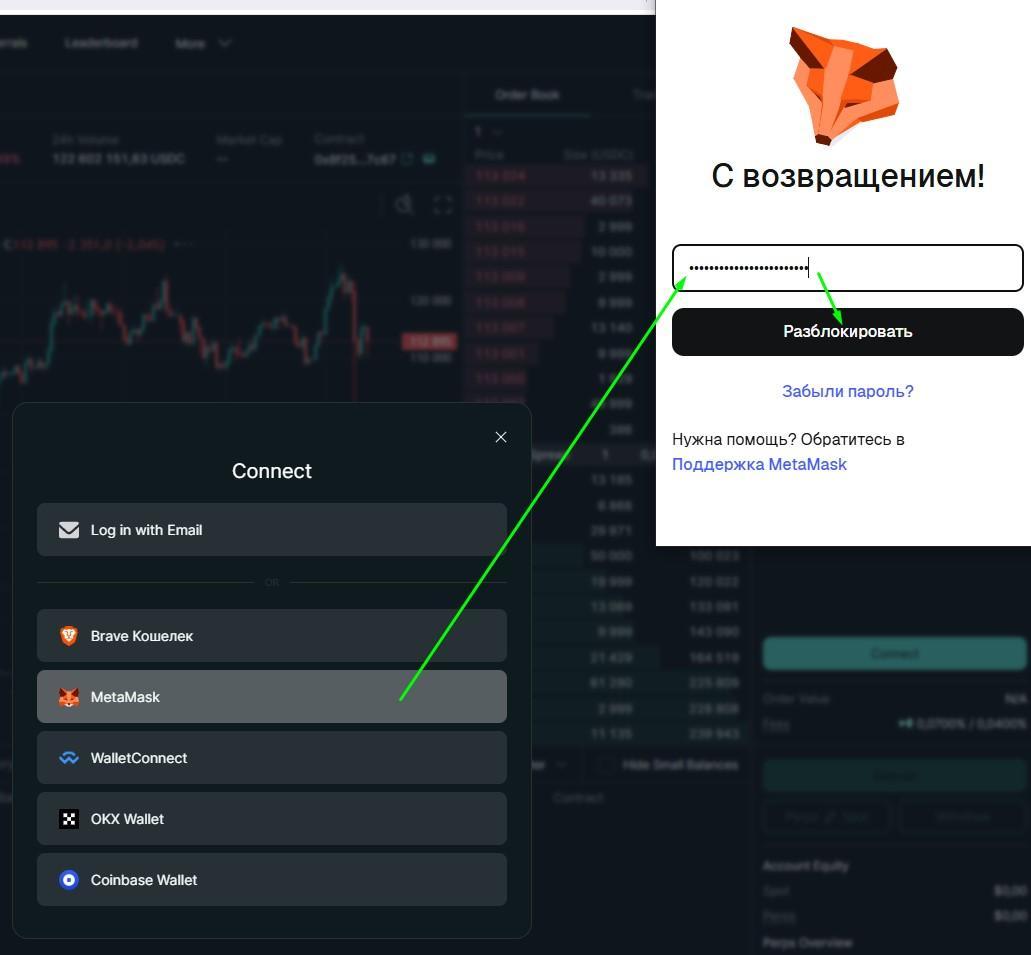

1\) In the **Connect** window, select **MetaMask**;

2\) In the opened browser wallet window, enter the password if required and click **Unlock**;

3\) If your wallet is not listed in the **Connect** window, select **WalletConnect** and complete authorization using a QR code.

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%A0%D0%B0%D0%B7%D0%B1%D0%BB%D0%BE%D0%BA%D0%B8%D1%80%D0%BE%D0%B2%D0%B0%D1%82%D1%8C.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%A0%D0%B0%D0%B7%D0%B1%D0%BB%D0%BE%D0%BA%D0%B8%D1%80%D0%BE%D0%B2%D0%B0%D1%82%D1%8C.jpg)

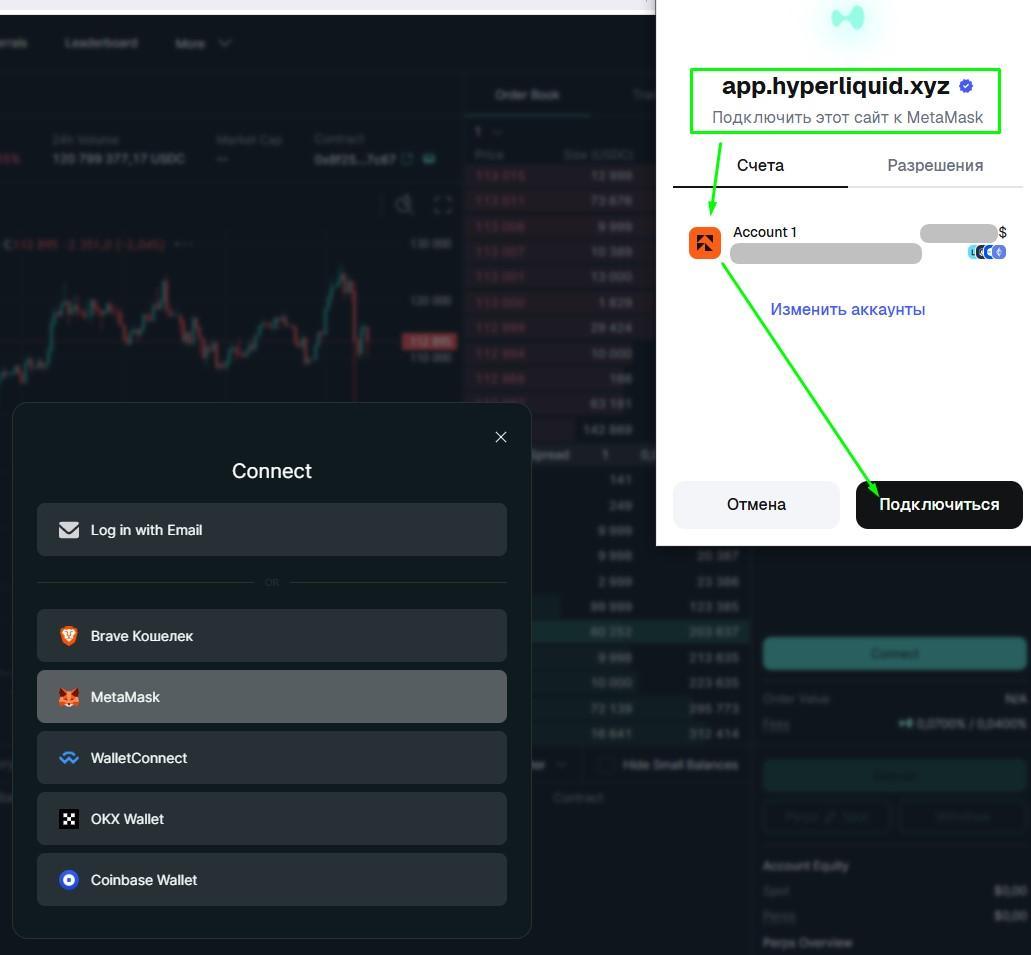

4\) Create a new account in the wallet (if necessary);

5\) Select the account that will be connected to the Hyperliquid exchange and click **Connect**.

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%9F%D0%BE%D0%B4%D0%BA%D0%BB%D1%8E%D1%87%D0%B8%D1%82%D1%8C%D1%81%D1%8F.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%9F%D0%BE%D0%B4%D0%BA%D0%BB%D1%8E%D1%87%D0%B8%D1%82%D1%8C%D1%81%D1%8F.jpg)

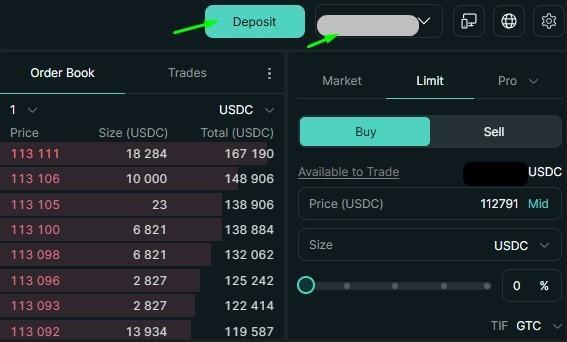

After a successful connection, the **Deposit** button will appear on the Hyperliquid website, and your trading address on the exchange will be displayed on the right.

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Deposit-1772993626.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Deposit-1772993626.jpg)

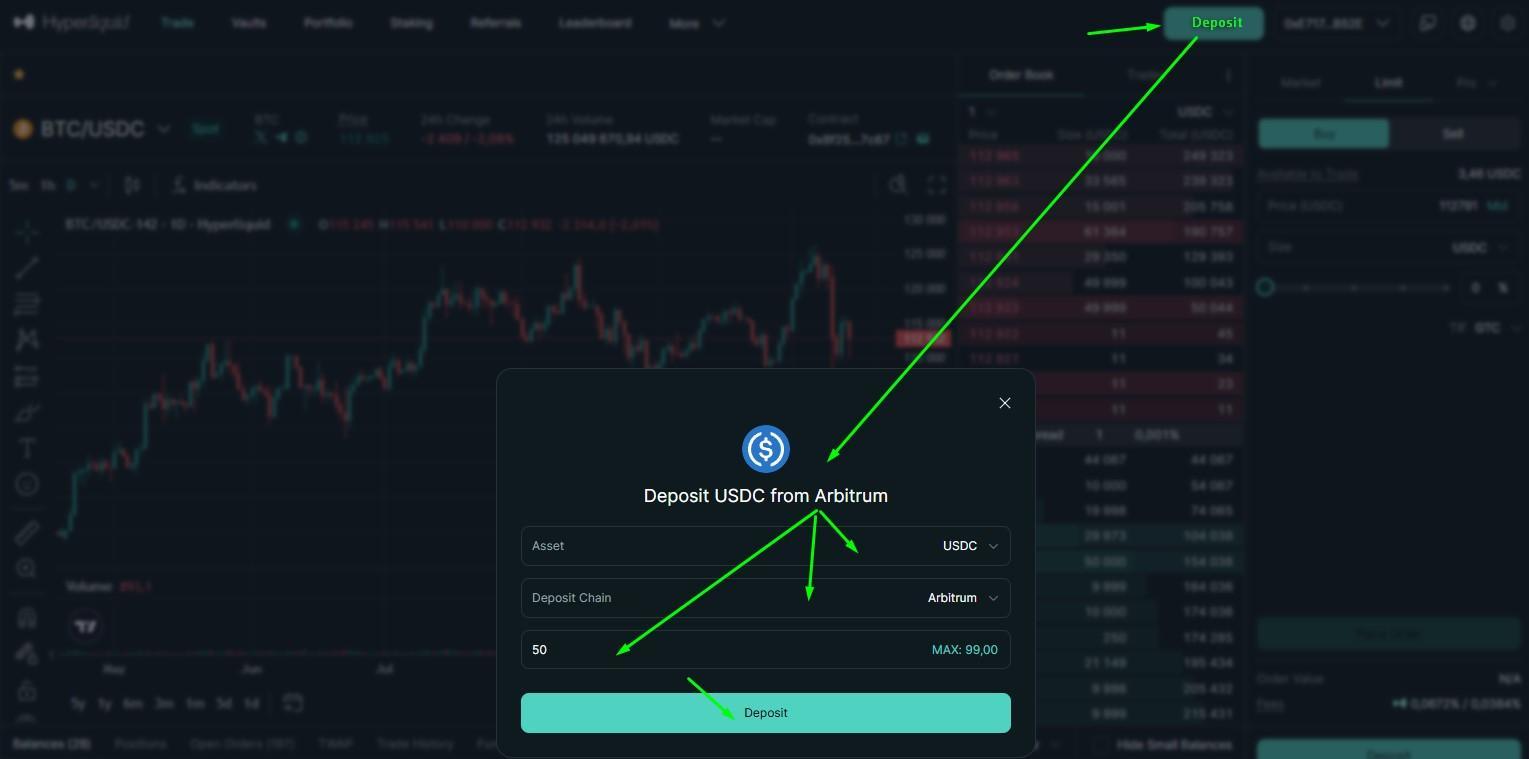

6\) Click the **Deposit** button and in the **Deposit USDC from Arbitrum** window do the following:

1. In the Assets menu, select USDC;
2. In the **Deposit Chain** menu, select **Arbitrum**;
3. In the lower field, specify the amount in USDC that you plan to send from the wallet to the Hyperliquid exchange; the minimum deposit amount is 5 USDC; when you click the **MAX** button, the maximum available amount of USDC in the wallet will be filled automatically;
4. Click the **Deposit** button.

![](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%D0%BE%D0%BA%D0%BD%D0%B5%20Deposit%20USDC%20from%20Arbitrum.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%D0%BE%D0%BA%D0%BD%D0%B5%20Deposit%20USDC%20from%20Arbitrum.jpg)

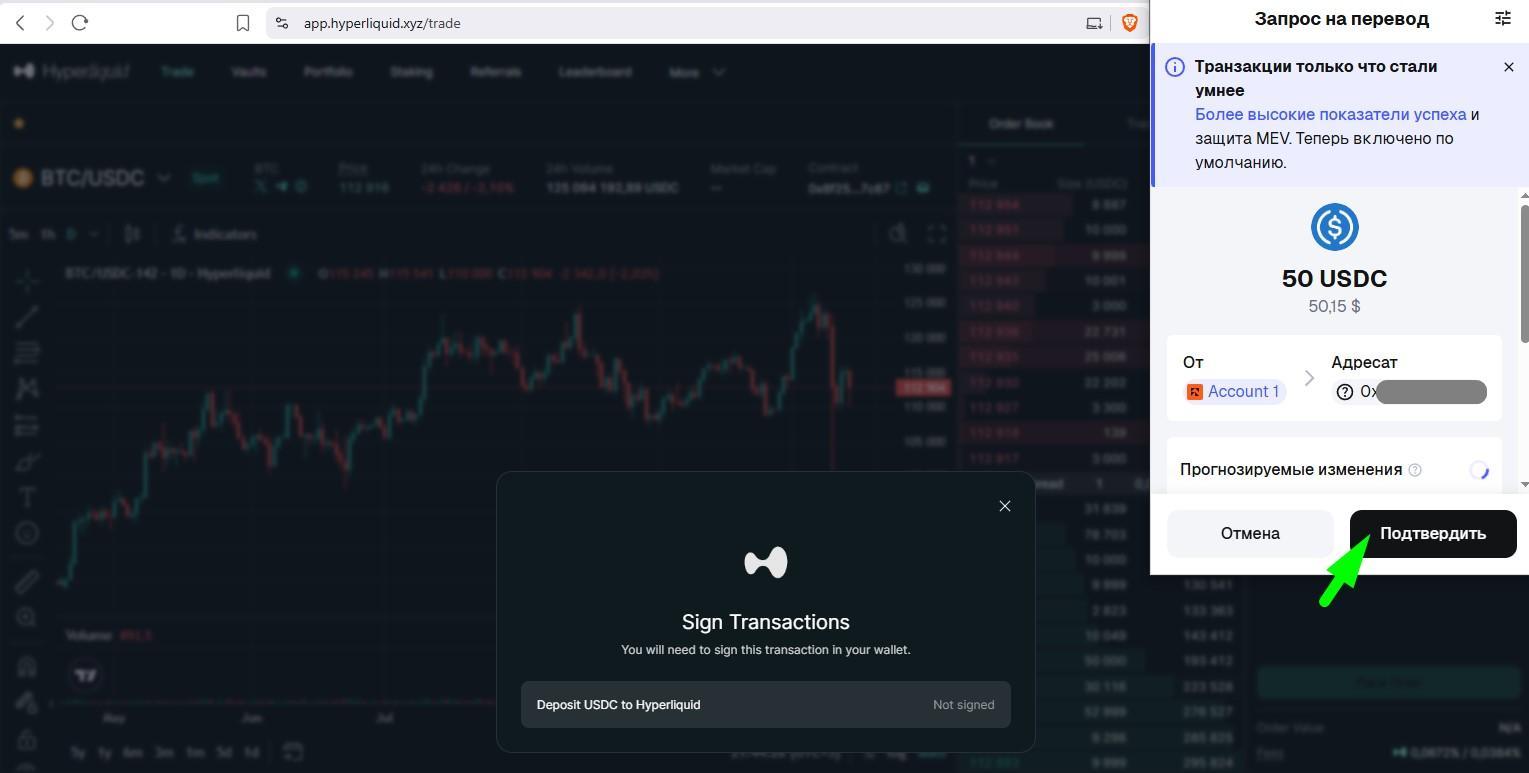

After clicking the **Deposit** button, the wallet window will open; to confirm the transaction, click **Confirm**.

💡 **Note** that your wallet balance must contain a sufficient amount of ETH to pay the transaction fee (gas).

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%9F%D0%BE%D0%B4%D1%82%D0%B2%D0%B5%D1%80%D0%B4%D0%B8%D1%82%D1%8C.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20%D0%9F%D0%BE%D0%B4%D1%82%D0%B2%D0%B5%D1%80%D0%B4%D0%B8%D1%82%D1%8C.jpg)

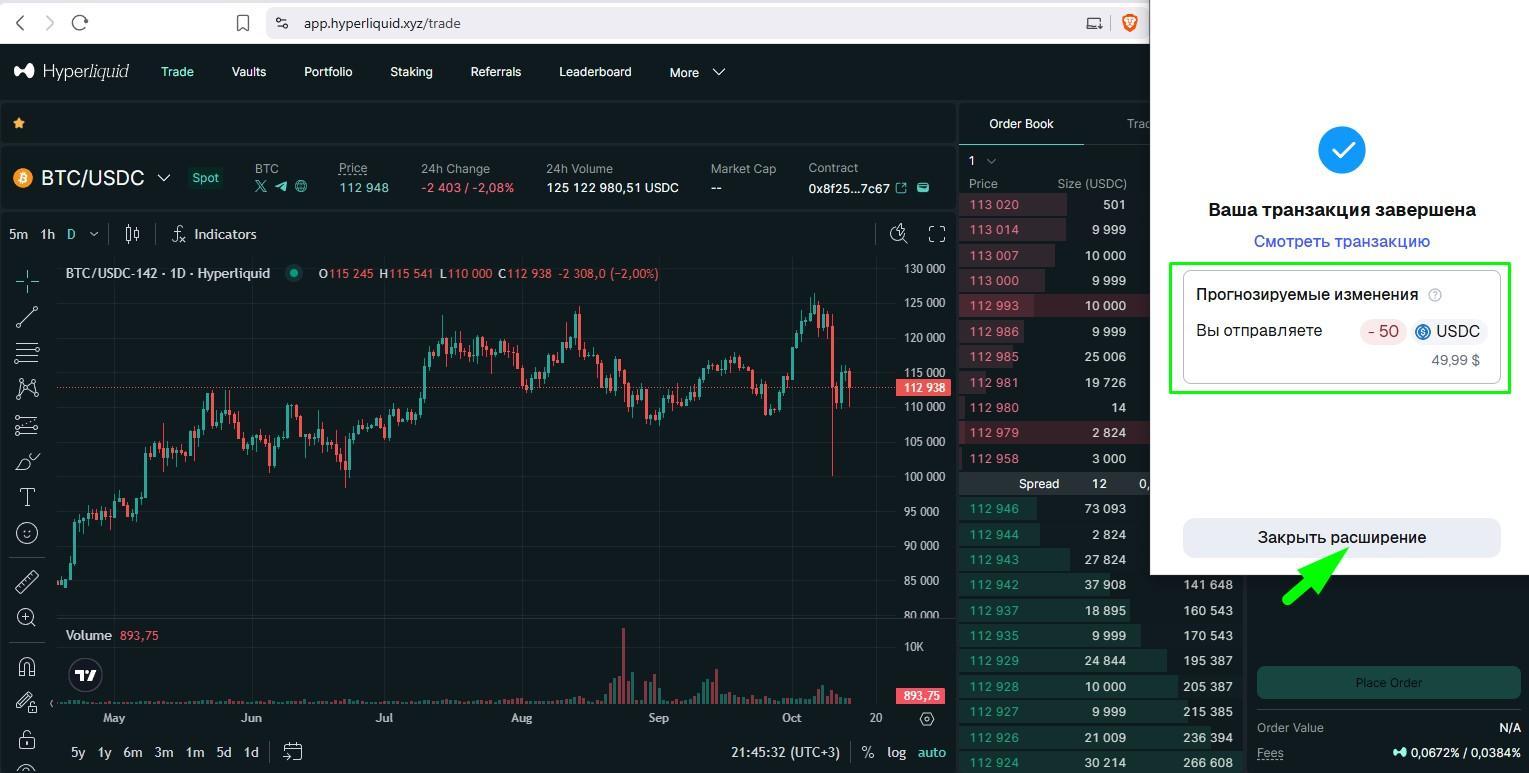

After completing the transaction in the wallet, click **Close Extension**.

![](https://moonbot.pro/storage/editor-images/%D0%97%D0%B0%D0%B2%D0%B5%D1%80%D1%88%D0%B5%D0%BD%D0%B8%D0%B5%20%D1%82%D1%80%D0%B0%D0%BD%D0%B7%D0%B0%D0%BA%D1%86%D0%B8%D0%B8-1772994214.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%97%D0%B0%D0%B2%D0%B5%D1%80%D1%88%D0%B5%D0%BD%D0%B8%D0%B5%20%D1%82%D1%80%D0%B0%D0%BD%D0%B7%D0%B0%D0%BA%D1%86%D0%B8%D0%B8-1772994214.jpg)

After confirming the transaction on the Hyperliquid exchange, the specified amount of USDC will appear on the futures balance (**Perps**).

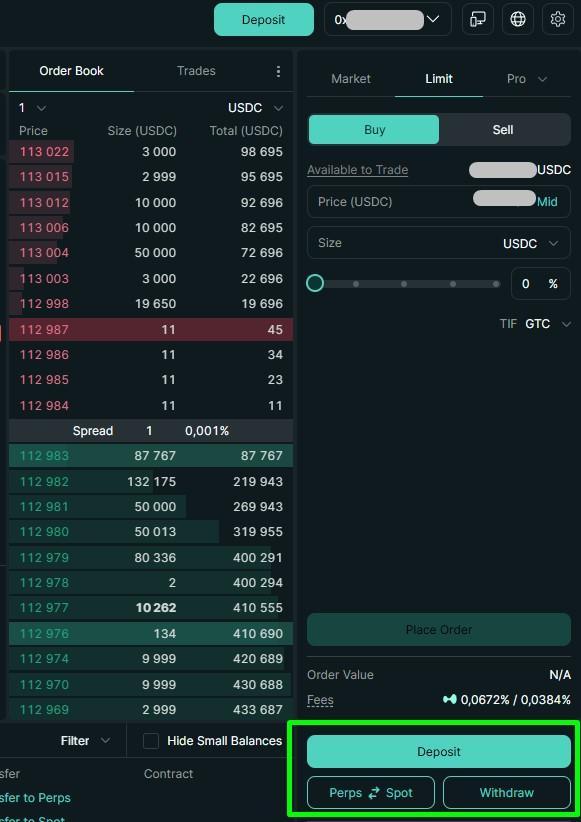

To transfer funds from the futures balance to the spot balance, perform the following steps:

1. Click the **Perps-Spot** button;
2. Confirm the operation via the connected wallet.

In the same section you can also:

- Top up your balance using the Deposit button;
- Withdraw funds back to the connected wallet using the Withdraw button; the withdrawal fee is 1 USDC.

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Perps-Spot-1772994436.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Perps-Spot-1772994436.jpg)

### Instructions on how to create an API key on Hyperliquid for Moonbot

After funding your balance on the Hyperliquid website, perform the following steps:

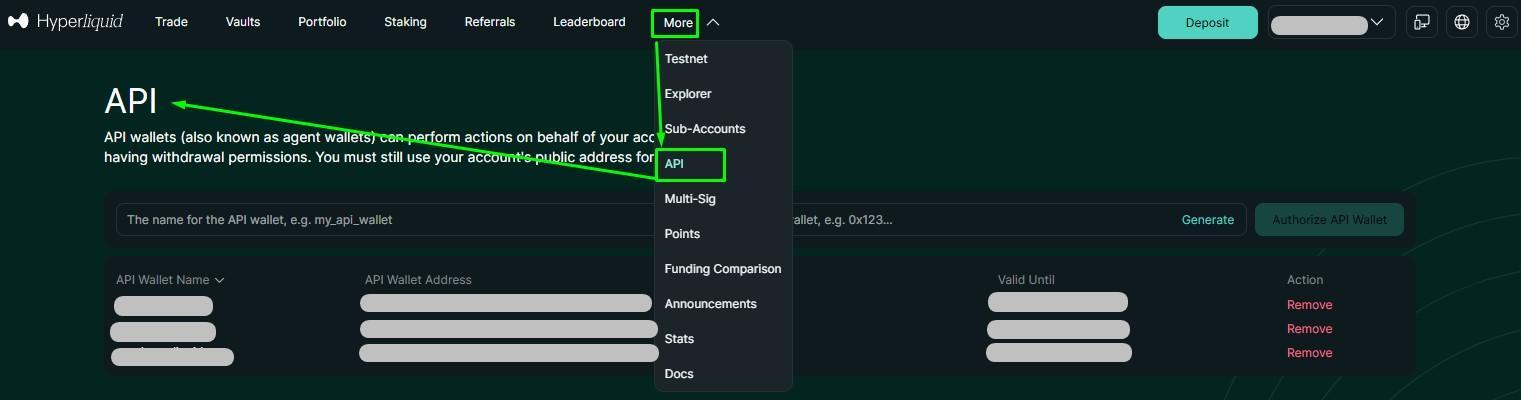

1\) Go to the **More** tab and select **API** to open the API key creation page;

![](https://moonbot.pro/storage/editor-images/%D0%92%D0%BA%D0%BB%D0%B0%D0%B4%D0%BA%D0%B0%20More-1772994540.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%92%D0%BA%D0%BB%D0%B0%D0%B4%D0%BA%D0%B0%20More-1772994540.jpg)

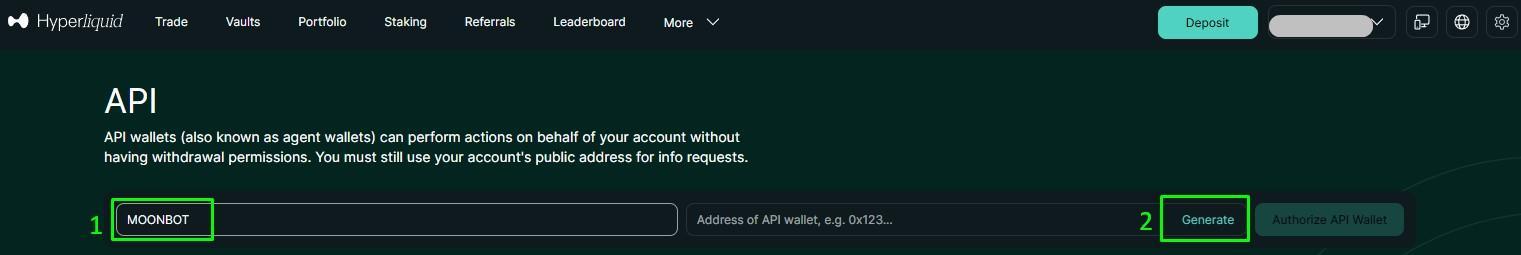

2\) In field 1, enter a custom name for the API key (no more than 16 characters) and click **Generate**;

![](https://moonbot.pro/storage/editor-images/%D0%98%D0%BC%D1%8F%20%D0%B4%D0%BB%D1%8F%20API-%D0%BA%D0%BB%D1%8E%D1%87%D0%B0.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%98%D0%BC%D1%8F%20%D0%B4%D0%BB%D1%8F%20API-%D0%BA%D0%BB%D1%8E%D1%87%D0%B0.jpg)

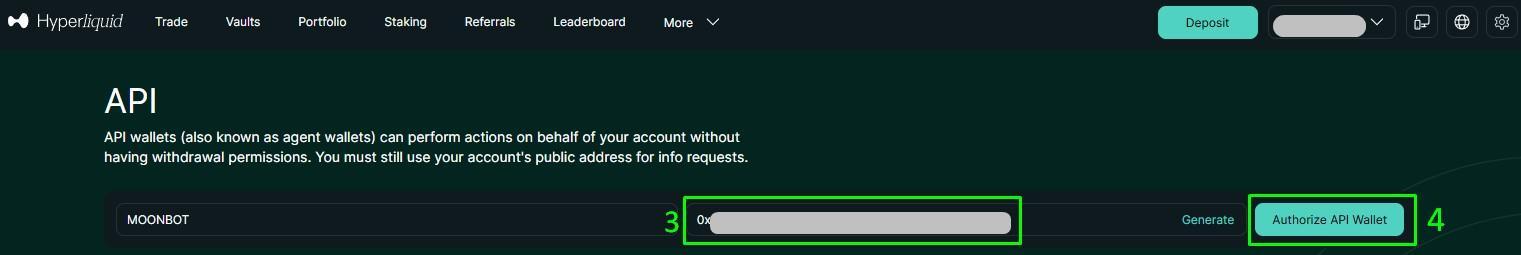

3\) In field 3, the **API Wallet Address** will be generated; click **Authorize API Wallet**;

![](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Authorize%20API%20Wallet.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9A%D0%BD%D0%BE%D0%BF%D0%BA%D0%B0%20Authorize%20API%20Wallet.jpg)

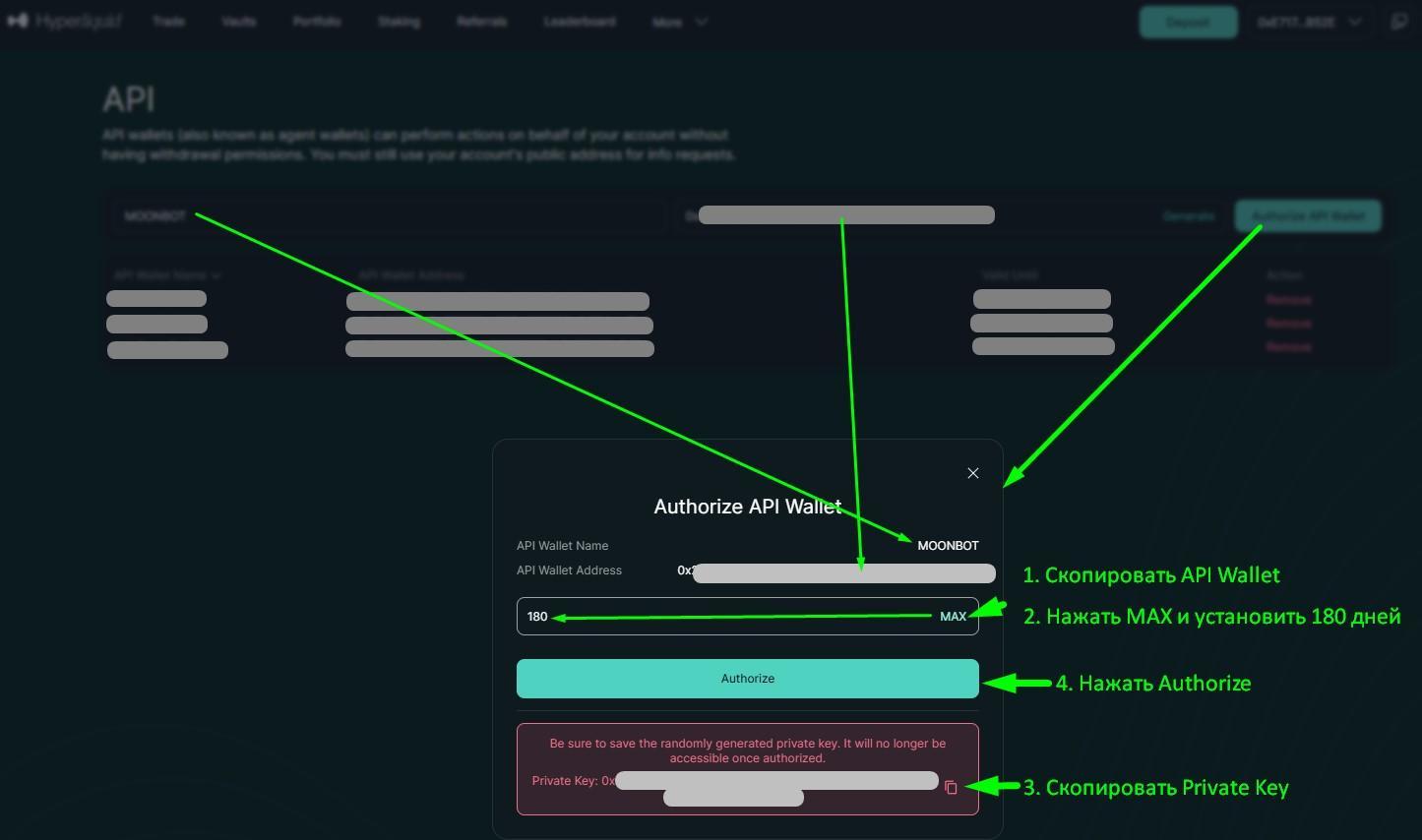

In the opened Authorize API Wallet window:

4\) Check the **API Wallet Name** value (the name specified earlier);

5\) Copy or save the **API Wallet Address** - it will be required for entering in the Moonbot terminal;

6\) If necessary, specify the validity period of the API key; clicking **MAX** will set the maximum validity period to **180 days**;

**Seven days before** this expiry date, a warning highlighted in red will appear in the main terminal window **"API: N days"**, which indicates the number of days remaining before the API keys expire; a notification to this effect will also be sent via Telegram (initially no more than once every 6 hours; if fewer than 4 days remain, messages will be sent once an hour). This mechanism for checking the expiry dates of API keys has been implemented for all types of exchange connections: **Hyperliquid Spot и Hyperliquid Futures**.

7\) In the red field, copy or save the **Private** **Key** - it will be required for entering in the Moonbot terminal;

8\) Click **Authorize**;

![](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Authorize%20API%20Wallet.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Authorize%20API%20Wallet.jpg)

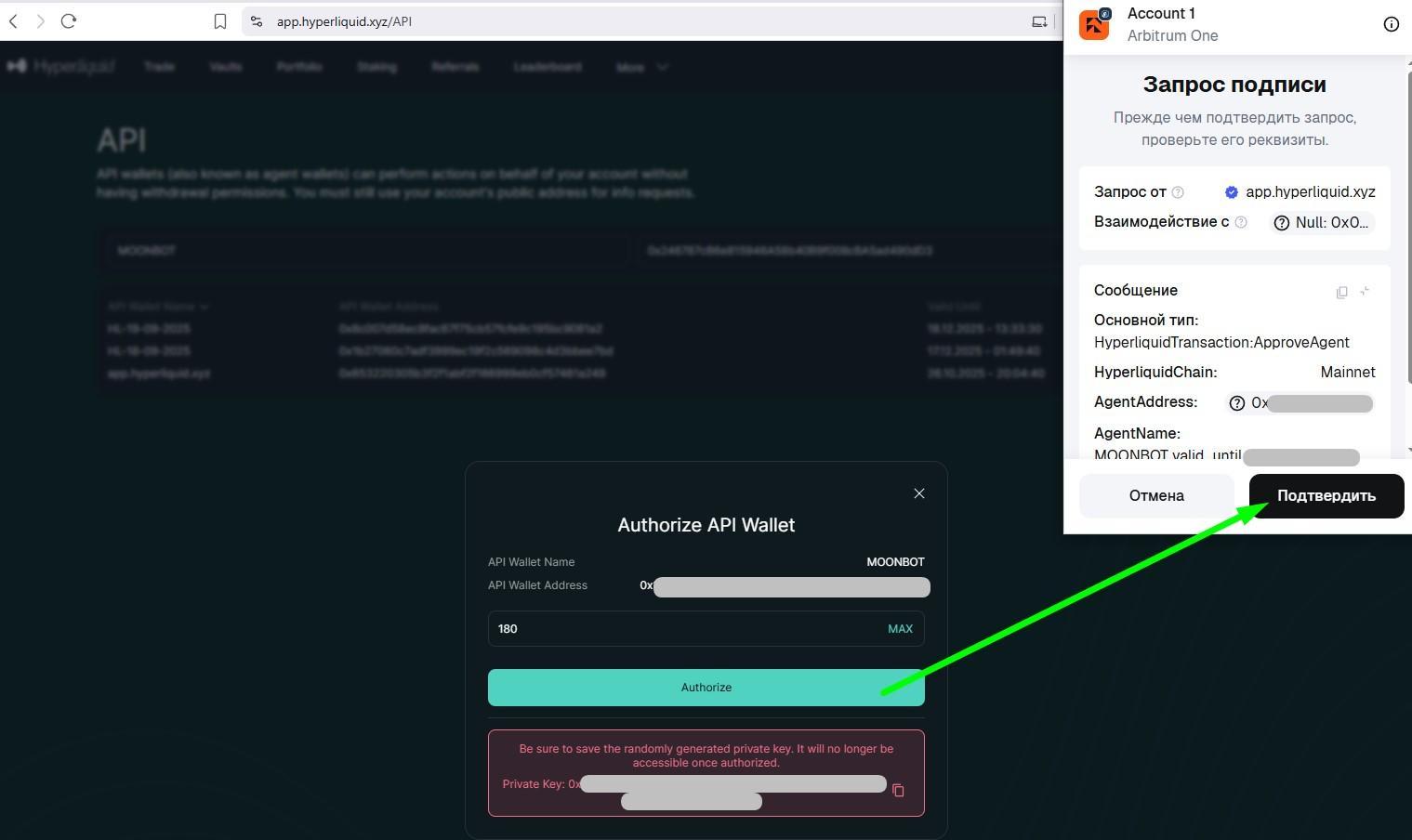

After that, the wallet will open, where you need to confirm the signature request to create API keys for the Hyperliquid exchange by clicking **Confirm**.

![](https://moonbot.pro/storage/editor-images/%D0%9F%D0%BE%D0%B4%D1%82%D0%B2%D0%B5%D1%80%D0%B6%D0%B4%D0%B5%D0%BD%D0%B8%D0%B5%20%D0%B7%D0%B0%D0%BF%D1%80%D0%BE%D1%81%D0%B0%20%D0%BF%D0%BE%D0%B4%D0%BF%D0%B8%D1%81%D0%B8.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9F%D0%BE%D0%B4%D1%82%D0%B2%D0%B5%D1%80%D0%B6%D0%B4%D0%B5%D0%BD%D0%B8%D0%B5%20%D0%B7%D0%B0%D0%BF%D1%80%D0%BE%D1%81%D0%B0%20%D0%BF%D0%BE%D0%B4%D0%BF%D0%B8%D1%81%D0%B8.jpg)

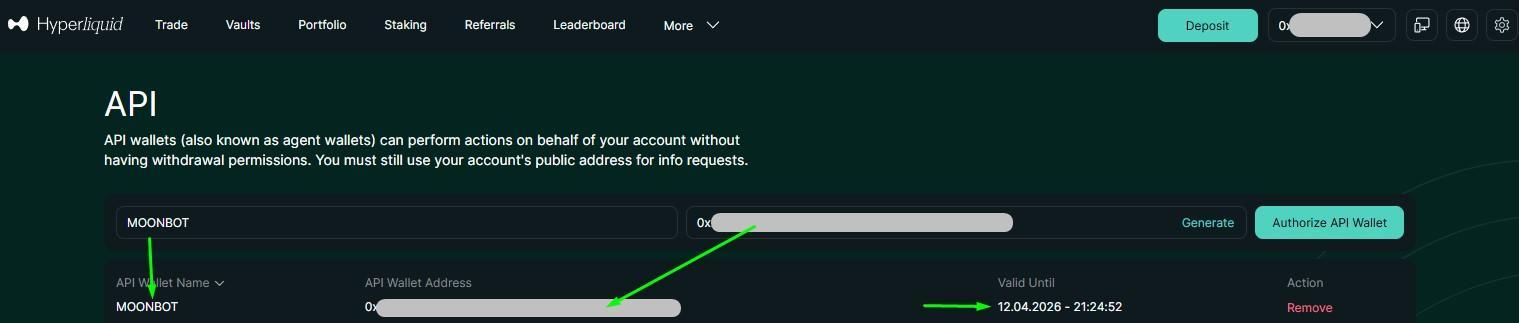

After successful confirmation, an entry with the created API key and its expiration date will appear on the **API** page. Below, an additional technical API with the name app.hyperliquid.xyz will be created automatically; this key is not used in the terminal, but it is not necessary to delete it.

To delete an unnecessary API key, click the red **Remove** link.

![](https://moonbot.pro/storage/editor-images/%D0%A1%D1%81%D1%8B%D0%BB%D0%BA%D0%B0%20Remove.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%A1%D1%81%D1%8B%D0%BB%D0%BA%D0%B0%20Remove.jpg)

### Instructions on how to connect Hyperliquid to the Moonbot terminal

1. Create API keys on the Hyperliquid exchange website for the main account or a subaccount;
2. Copy the folder containing your main PRO terminal for another exchange into a new folder and run the copy of the terminal in administrator mode so that you can then configure it as the terminal for Hyperliquid;
3. Go to **Settings → Login**, in the Exchange field select **Hyper Spot** (for spot) or **Hyper Futures** (for futures) and click **Apply**;
4. In **Settings → Login**, perform the following actions:
   1. In the **API Key** field, enter the API Wallet Address obtained earlier on the Hyperliquid exchange;
   2. In the **API Secret** field, enter the Private Key obtained earlier on the Hyperliquid exchange;
   3. Register the entered API keys for the main account or subaccount;

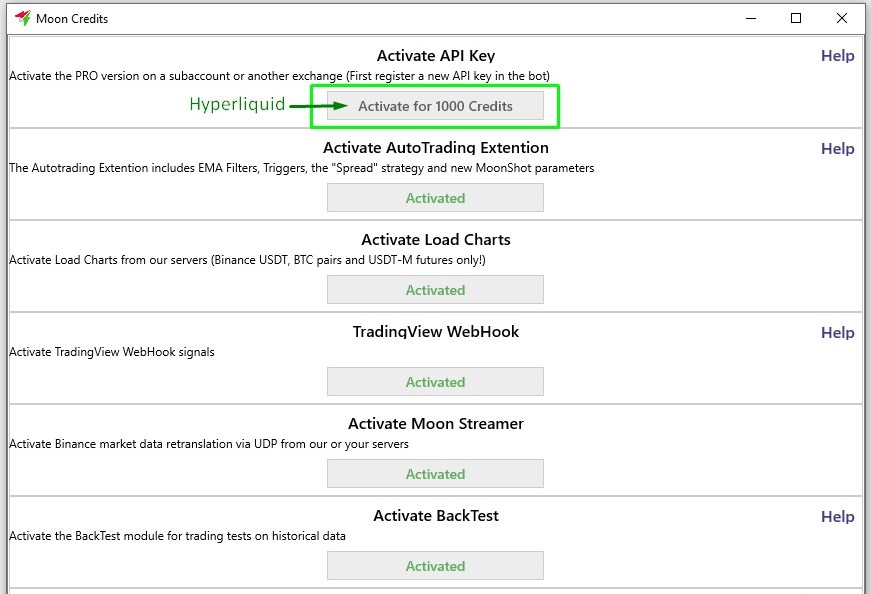

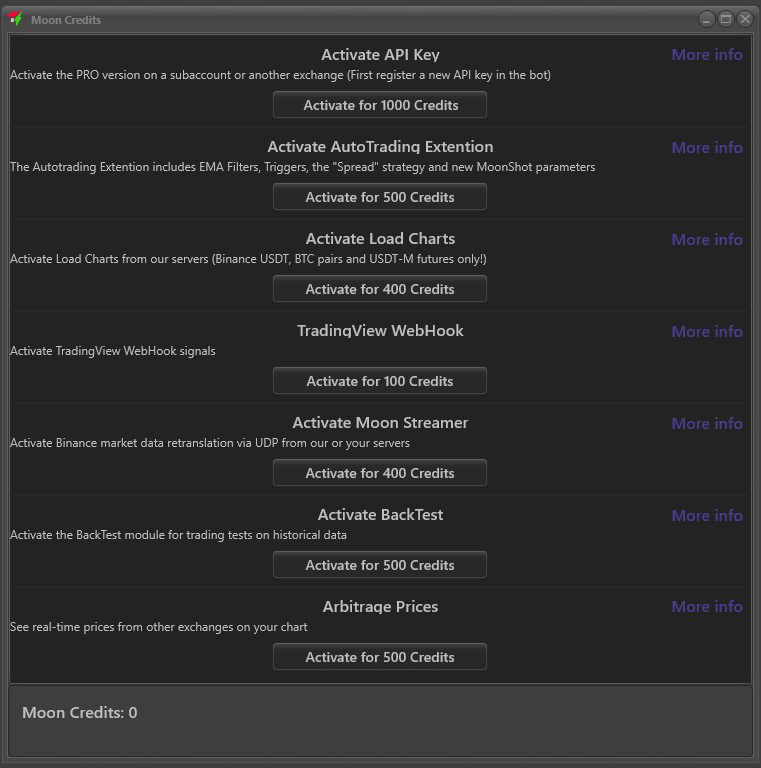

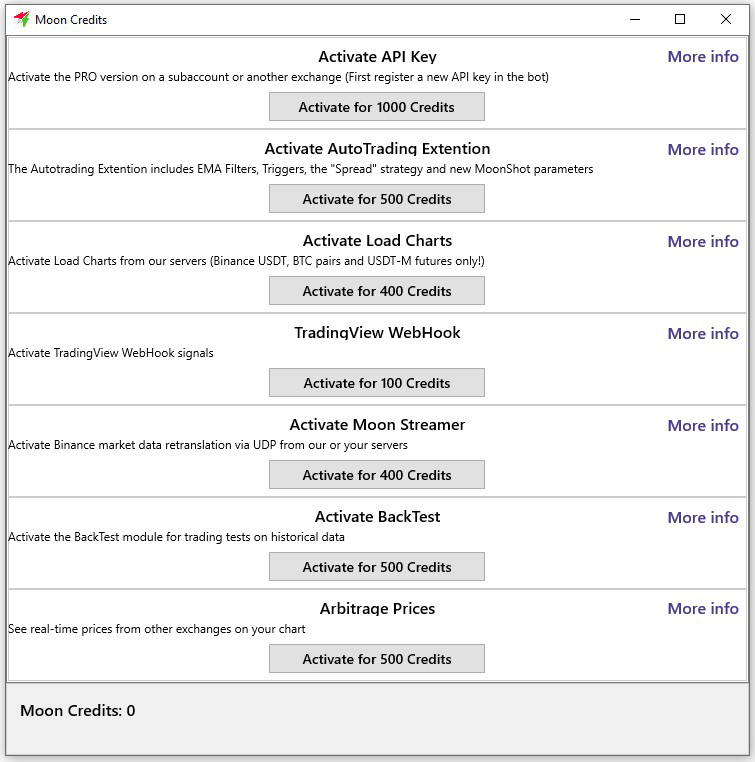

5. In the lower-right corner of the main window of the Moonbot terminal, click the **PRO version** label to open the **Moon Credits** window with activations of paid modules (see the figure below);
6. In the **Moon Credits** window, the lower section displays the balance of your Moon Credits; activating the main account or one subaccount of the Hyperliquid exchange requires 1000 Moon Credits; if the balance is sufficient, in the **Activate API Key** block click the **Activate for 1000 Credits** button - the API keys will then be activated on this terminal for trading cryptocurrencies on the Hyperliquid exchange;
7. If you need to activate additional subaccounts of the same exchange, repeat the procedure the required number of times;
8. If after connection there are no trades in the terminal or the order book is not displayed, click **Menu → Reconnect Engine** or restart the Moonbot terminal several times until the data appears.

![](https://moonbot.pro/storage/editor-images/MoonCredits-New_HL-W-eng.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/MoonCredits-New_HL-B-eng.jpg)

### Technical Details When Working with the Hyperliquid Exchange

1\. Fees on the Hyperliquid exchange may be charged either in USDC or in traded coins; current rates and ways to reduce them are described on the page 🔗 [https://hyperliquid.gitbook.io/hyperliquid-docs/trading/fees](https://hyperliquid.gitbook.io/hyperliquid-docs/trading/fees); additionally, a small developer fee of the Moonbot terminal is charged, which is activated on the first launch of the terminal connected to Hyperliquid; on the first launch, an API key error may appear and the page 🔗 [https://api.moon-bot.com/files/HLsign.html](https://api.moon-bot.com/files/HLsign.html) with the Approve Builder Fee window will open automatically; click Connect & Approve, then confirm the operation in the browser wallet; after the Done status appears, restart the Moonbot terminal as administrator; this procedure must be performed once for each account;

![](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Approve%20Builder%20Fee-1772995691.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/%D0%9E%D0%BA%D0%BD%D0%BE%20Approve%20Builder%20Fee-1772995691.jpg)

2\. Strictly follow the rule “**One API key = One terminal = One launch**”; violation will lead to malfunctions of terminals running on the same API; the exchange uses the principle of monotonic command indexing, therefore two terminals with the same API break the request chain; a separate API key is required for each simultaneously running terminal;

3\. Exchange limits are 1200 requests per minute for all operations; additionally, Fill Ratio applies — 1 request per each 1 USDC of total trading volume; the initial buffer is 10,000 orders; when it is exhausted, it is necessary to make new transactions to gradually increase the limit. Learn more about the limits of the Hyperliquid exchange 🔗 [Rate limits and user limits >>>](https://hyperliquid.gitbook.io/hyperliquid-docs/for-developers/api/rate-limits-and-user-limits);

From version 7.71 (17 September 2026) onwards, for the Hyperliquid exchange, the remaining limit order quota for an address is displayed directly in the terminal: click on the circle (traffic light) in the bottom information panel and look for the "**Requests left**" line in the Info window to see the current remaining limit order quotas.

Clicking on the text "R**equests left: NNNNN (click to buy more)**" will open a dedicated page on our website, where you can view the limit order balances in more detail, set the required number of limit orders and purchase them by confirming the transaction via a QR code signature for your master wallet.

![](https://moonbot.pro/storage/editor-images/Info-Window-W-HL.jpg.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/Info-Window-B-HL.jpg.jpg)

![](https://moonbot.pro/storage/editor-images/Hyperliquid-requests-limit-W-eng-1790074485.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/Hyperliquid-requests-limit-B-eng-1790074491.jpg)

The initial limit quota for an address is 10,000, plus the total USDC turnover for that address over its lifetime, where 1 USDC of turnover = +1 request. Only the following actions use up the limit quota: placing, cancelling or modifying an order; viewing prices and order books does not use up the limit quota. For example, if you are using a new account, the initial buffer of 10,000 is used up quite quickly by the MoonShot strategy’s empty orders: reordering at a price counts as a request, but as there are no purchases, there is no turnover. In other words, in this case, you either need to generate volume by constantly buying something or purchase additional limit requests from the exchange.

Previously, it looked like this: the order simply didn’t go through, and the log contained a message such as the following:

*Too many cumulative requests sent (66,170 > 66,059) for cumulative volume traded $56,060.05*

The address limit quota is shared across the account – multiple terminals using the same address but with different APIs all contribute to this quota. A sub-account for Hyperliquid is a separate user, with its own address limit counter.

Now, as the limit approaches zero, the terminal automatically halts strategies and cancels entry orders, leaving a reserve for orders that are already active. When the limit is reached, the address is allowed one request every 10 seconds; moreover, the limit for cancellations is twice as high: you can still cancel your own orders, but you cannot place new ones. Previously, at this point, the terminal would maintain the strategies’ activity, send repeat requests on their behalf and completely exhaust the remaining limit quota – which was precisely what was needed to exit the position. Now the algorithm has been corrected, and the remaining limit quota is reserved for closing positions rather than placing new orders.\
A corresponding command has also been added to the MoonProto core-client communication protocol, and when the address quota is exhausted, the core notifies its connected clients of this.

The Moonbot terminal for the Hyperliquid exchange supports the following account type options and automatically detects them: **Unified Account** (Recommended), **Portfolio Margin**, and **Manual**.

On the Hyperliquid exchange website, we recommend using the “**Unified Account**” account type. To do this, click on “**Portfolio**” and then on “**Account Type**”. Next, select the “**Unified Account** (Recommended)” option, click on “**Establish Connection**”, and confirm the request to change the account type via the wallet.

![](https://moonbot.pro/storage/editor-images/Hyperliquid-Portfolio.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/Hyperliquid-Portfolio.jpg)

![](https://moonbot.pro/storage/editor-images/Hyperliquid-Unified-Account.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/Hyperliquid-Unified-Account.jpg)

**Important!** In the **Unified Account** and **Portfolio Margin** modes, the exchange has set an additional limit of **50,000 actions per day**. If this is not sufficient for your trading, you will need to switch to the Manual account type in your exchange account.

4\. On the Hyperliquid DEX exchange, deposits and withdrawals are performed only in USDC; withdrawal of other tokens is possible via third-party services;

5\. Latency (ping) on Hyperliquid may be 1–2 seconds; this is due to the specifics of DEX and transaction processing on the blockchain;

6\. “Lost” positions and coin balances after closing trades are possible; regularly check balances in **Menu → Assets**; partial order execution may lead to remaining balances being stuck;

7\. Loading of coin data at startup is accelerated when using the **Load Charts** module and with the **Settings → Main → Analize coins on startup** option enabled;

8\. **Cross** and **Isolated** margin modes are supported;

9\. Automated trading may be difficult due to 1–2 second delays and API limitations; order losses and absence of some indicators are possible;

10\. The terminal folder contains the secp256k1.dll file used for signing blockchain requests; do not delete it when copying the folder;

11\. You can also use the **FREE version** of the Moonbot trading terminal to trade on the **Hyperliquid** exchange, subject to certain **restrictions**;

12\. Chart loading is supported only on futures;

13\. In the **Menu → Assets** window, spot and futures balances are displayed; transferring funds between them is performed only on the Hyperliquid website with wallet confirmation;

14\. The exchange does not provide PNL data via API; the PNL value on the chart is displayed as 0$; actual results can be checked on the page 🔗 [https://app.hyperliquid.xyz/portfolio](https://app.hyperliquid.xyz/portfolio);

15\. On futures, a liquidation line is displayed when opening a position; after closing the position, the line disappears;

16\. The API load indicator is calculated; the exchange does not provide exact API usage data; mark price updates occur every 6 seconds;

17\. With the **Settings → Advanced → Engine settings → Ignore Replacing bug** option enabled, faster order replacement is possible; \
⚠️ **Warning**! With partial order execution on a DEX, the probability of the “replacing bug” is very high; order replacement may lead to stuck balances;

18\. The **LogEveryRequest** command in the coin input field outputs all requests to the log; used for diagnosing blocks;

19\. When receiving error 429 while placing a take order, 5 additional attempts are made with increasing delays;

20\. On futures, orders are automatically placed in **ReduceOnly** mode, which prevents position reversal when closing a long;

21\. Balance updates are accelerated and the order book depth is increased compared to earlier versions;

22\. On the exchange, it is possible to create up to 50 subaccounts with a trading volume above 100,000 USD; they work only via the web interface and are not supported in the Moonbot terminal; for API usage, a new wallet must be created and activated again in the terminal;

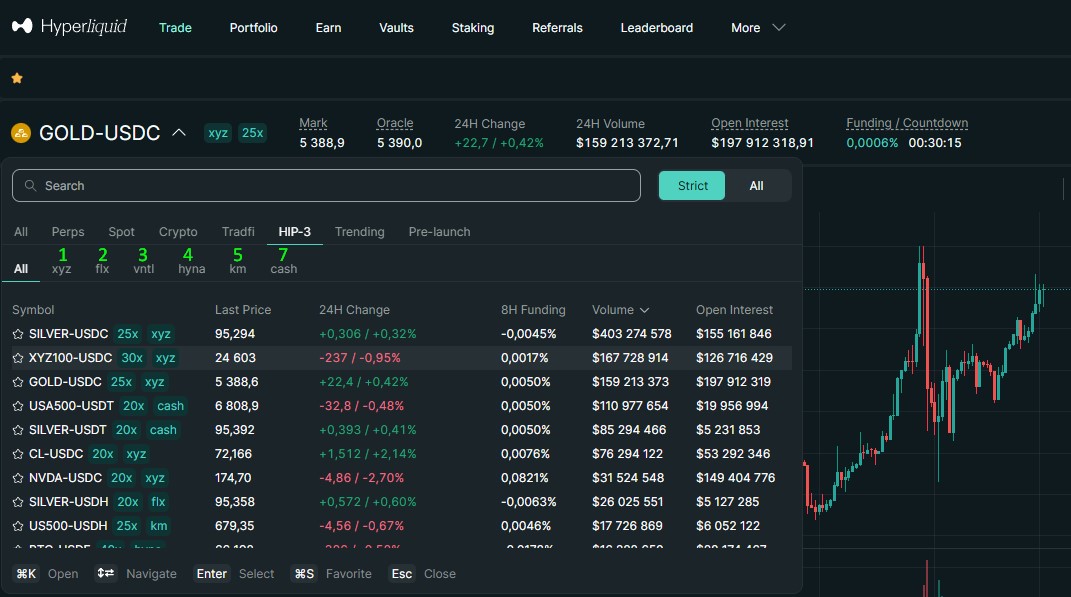

23\. When connecting the Moonbot terminal to the Hyperliquid exchange, trading via API on HIP-3 markets is available.

![](https://moonbot.pro/storage/editor-images/Hyperliquid-HIP-New-3.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/Hyperliquid-HIP-New-3.jpg)

These markets are treated as separate entities and require a specific connection in Moonbot, at a rate of one market per Moonbot instance.

To find out which HIP-3 markets are currently available and their indices, you need to launch the Moonbot terminal, for example with **HIP3_DexIndex=1** for xyz (XYZ) in the **MoonBot.ini**, and check the log for the list of current indices.

At the moment, the following markets will be displayed in the log:

**DEX\[1\]: xyz (XYZ)\
DEX\[2\]: flx (Felix Exchange)** (\*currently not serviced)\
**DEX\[3\]: vntl (Ventuals)** (\*currently not serviced)\
**DEX\[4\]: hyna (HyENA)** (\*currently not serviced)\
**DEX\[5\]: km (Markets by Kinetiq)** (\*currently not serviced)\
**DEX\[6\]: abcd (ABCDEx)** (\*currently not serviced)\
**DEX\[7\]: cash (dreamcash)** (\*currently not serviced)\
**DEX\[8\]: para (Paragon)**\
**DEX\[9\]: mkts (Markets By Kinetiq) \
DEX\[10\]: io (EntropyIO)**

To connect one of the required markers, you need to click the “**HL:…**” button at the top of the Moonbot terminal’s main window and select the required option from the pair selection menu.

![](https://moonbot.pro/storage/editor-images/HL-crypto-W.jpg)

![(dark)](https://moonbot.pro/storage/editor-images/HL-crypto-B.jpg)

- **crypto**\
  To select the **Hyper-Futures market (excluding HIP-3)** with a **USDC** balance for trading.\
  0G, 2Z, AAVE, ACE, ADA, AERO, AIXBT, ALGO, ALT, ANIME, APE, APEX, APT, AR, ARB, ASTER, ATOM, AVAX, AVNT, AXS, AZTEC, BABY, BANANA, BCH, BERA, BIGTIME, BIO, BLUR, BNB, BOME, BRETT, BSV, BTC, CAKE, CASHCAT, CC, CELO, CFX, CHIP, COMP, CRV, DASH, DOGE, DOT, DYDX, DYM, EIGEN, ENA, ENS, ETC, ETH, ETHFI, FARTCOIN, FET, FIL, FOGO, GALA, GAS, GMT, GMX, GOAT, GRAM, GRASS, GRIFFAIN, HBAR, HEMI, HMSTR, HYPE, HYPER, ICP, IMX, INIT, INJ, IO, IOTA, JTO, JUP, KAITO, KAS, kBONK, kFLOKI, kLUNC, kNEIRO, kPEPE, kSHIB, LAYER, LDO, LINEA, LINK, LIT, LTC, MANTA, ME, MEGA, MELANIA, MEME, MERL, MET, MINA, MNT, MON, MOODENG, MORPHO, MOVE, NEAR, NEO, NIL, NOT, NXPC, ONDO, OP, ORDI, PAXG, PENDLE, PENGU, PEOPLE, PNUT, POL, POLYX, POPCAT, PROVE, PUMP, PURR, PYTH, RENDER, RESOLV, REZ, RSR, RUNE, S, SAGA, SAND, SEI, SKR, SKY, SNX, SOL, SOPH, SPX, STABLE, STBL, STRK, STX, SUI, SUPER, SUSHI, SYRUP, TAO, TIA, TNSR, TRB, TRUMP, TRX, TURBO, UMA, UNI, USUAL, VINE, VIRTUAL, VVV, W, WCT, WIF, WLD, WLFI, XAI, XLM, XMR, XPL, XRP, YGG, ZEC, ZEN, ZETA, ZK, ZORA, ZRO
- **xyz**\
  To select the **HIP-3 xyz (XYZ)** market with a **USDC** balance for trading.\
  AAPL, AMAT, AMD, AMZN, ARM, ASML, AVGO, BABA, BB, BE, BIRD, BOT, BRENTOIL, BX, CBRS, CL, COIN, COPPER, COST, CRCL, CRWV, CXMT, DELL, DKNG, DRAM, EBAY, EUR, EWJ, EWT, EWY, EWZ, GBP, GIGADEV, GME, GOLD, GOOGL, HIMS, HOOD, HYUNDAI, IBM, INTC, JP225, JPY, KIOXIA, KR200, LITE, LLY, META, MINIMAX, MRVL, MSFT, MSTR, MU, NATGAS, NBIS, NFLX, NOK, NOW, NVDA, ORCL, PALLADIUM, PLATINUM, PLTR, PURRDAT, QCOM, QNT, RIVN, RKLB, SHAZ, SILVER, SKHX, SKHY, SMH, SMSN, SNDK, SOFTBANK, SP500, SPCX, STRC, TSLA, TSM, URNM, USAR, WDC, XLE, XYZ100, ZHIPU, ZM
- **hyna**\
  To select the **HIP-3 hyna (HyENA)** market with a **USDE** balance for trading.\
  (\*currently not serviced)
- **para**\
  To select the **HIP-3 para (Paragon)** market with a **USDC** balance for trading.\
  BTCD, IREN, TOTAL2, CRDO, COHR, STX, OTHERS, AVGO, LRCX, GLW
- **mkts**\
  To select the **HIP-3 mkts (Markets By Kinetiq)** market with a **USDC** balance for trading.\
  US500, USTECH (QQQ)
- **io**\
  To select the **HIP-3 io (EntropyIO)** market with a **USDC** balance for trading.\
  ANTH, SNDK

If you need to trade on different markets simultaneously, you should create several copies of the Moonbot terminal, specify your own API credentials in each one, and select the relevant market.

⚠️ **Warning!**

- When creating folder copies and running multiple Moonbot terminals simultaneously, make sure that each of them uses its own API and they do not overlap. That is, **you must create and activate separate API keys in Moonbot for each HIP-3 market**, since the Hyperliquid exchange uses the principle of monotonic command indexing, and two or more running Moonbot terminals with the same API keys will break the command chain, which will lead to errors.
- In **Moon Kernel** mode – Moonbot’s client-server connection, where the Moonbot Client is installed on the local computer and the Moonbot Kernel is hosted on a VPS server – when trading on HIP-3 markets, ensure that the same market is specified everywhere.
- On the Hyperliquid exchange website, we recommend using the "**Unified Account**" account type. To do this, click on "**Portfolio**" and then on "**Account Type**". Then select the "**Unified Account (Recommended)**" option, click on "**Establish Connection**" and confirm the request via the wallet.

24\. In the Moonbot terminal connected to the Hyperliquid exchange, you can activate the heatmap of trading addresses using the **HMap** button in the main window, which helps track trading addresses of other traders with indication of the coin name, date, and order size. \
More details can be found on the 🔗 [HMap Button](https://moonbot.pro/en/documentation/main-terminal-window-with-advanced-settings/hmap-button?format=md) page.

25\. In the Moonbot terminal connected to the Hyperliquid exchange, you can create a special **Watcher strategy**, which after launch can automatically track the specified trading addresses and mark their activity on the chart with arrows. \
More details can be found on the 🔗 [Watcher strategy and its parameters](https://moonbot.pro/en/documentation/advanced-strategy-parameters/watcher-strategy-and-its-parameters?format=md) page.

26\. For the Hyperliquid exchange, a separate setting is available under the **Settings –> Advanced –> Engine settings** tab: "**Fast IOC (paid)**". If this box is ticked, orders that cross the order book are sent with paid priority as IOC (Immediate Or Cancel) – the exchange executes them before standard orders.\
The point is that this type of order attempts to be executed immediately. The system takes all available liquidity at your price the moment the order is placed. However, if part of the order cannot be executed (for example, if there simply aren’t enough counterparties at the desired price in the order book), the exchange automatically cancels this "unfilled" portion. In other words, an IOC order does not leave an unfilled portion in the order book – it either fills as much as possible straight away or cancels the remainder.\
IOC commission: 0.08% of the EXECUTED volume in HYPE.\
IOC priority: ~360 ms.\
An IOC order is not placed in the order book: any unfilled balance is cancelled.\
Payment for IOC orders: in your Hyperliquid exchange account, go to "Portfolio -> Staking", then transfer HYPE from Spot and do not delegate it to a validator.

27\. From version 7.71 (17 September 2026), the following fixes have been implemented for the Hyperliquid exchange:

\- Placing a take order when the ‘Price too far from oracle’ error occurs. The exchange checks the order price against its oracle and rejects prices that are too far off – previously, the take order would be rejected, but in the new version it is now placed.

\- A margin shortage is now treated as a funds shortage: a pause on the market instead of repeated orders of the same size. An order of the same size would not go through anyway, but on Hyperliquid, each attempt also deducted a request from the address’s limit quota.

28\. General Hyperliquid statistics are available on the 🔗 [https://stats.hyperliquid.xyz/](https://stats.hyperliquid.xyz/) page.

29\. The official Hyperliquid exchange documentation is available on the 🔗 [https://hyperliquid.gitbook.io/hyperliquid-docs](https://hyperliquid.gitbook.io/hyperliquid-docs) page.

Once you have obtained the API keys for Hyperliquid and registered them in the Moonbot terminal, you can either continue with the configuration or proceed to create strategies for detecting volatile price movements and automated cryptocurrency trading on the Hyperliquid exchange (see the [What Is Autotrading in Moonbot >>](https://moonbot.pro/en/begin/simple-auto-trading/what-is-autotrading-in-moonbot?format=md)).

## Navigation

Path: [Main](https://moonbot.pro/?format=md) / [Documentation](https://moonbot.pro/documentation?format=md) / [Settings Button](https://moonbot.pro/documentation/settings-button?format=md) / [“Settings → Login” Tab](https://moonbot.pro/documentation/settings-login-tab?format=md) / Connecting to the Hyperliquid exchange

Parent section: [“Settings → Login” Tab](https://moonbot.pro/documentation/settings-login-tab?format=md)

Previous: [Connecting to the Bitget exchange](https://moonbot.pro/documentation/settings-login-tab/connecting-to-the-bitget-exchange?format=md)

Next: [Connecting to the OKX exchange](https://moonbot.pro/documentation/settings-login-tab/connecting-to-the-okx-exchange?format=md)

## Related

- [Connecting to the OKX exchange](https://moonbot.pro/documentation/settings-login-tab/connecting-to-the-okx-exchange?format=md)
